Carbon steel swing check valve

Swing check valve is suitable for water, steam, oil, gas and weak corrosive media, widely used in petroleum, chemical, electric power, metallurgy and other industries in low and medium pressure piping system. The valve uses the valve flap to rotate around the axis of opening and closing, low resistance, suitable for large flow, low-frequency opening and closing conditions. The working temperature range is generally -29℃ to +550℃, depending on the material. The main function is to prevent backflow of media and protect equipment safety. Commonly used materials include carbon steel, stainless steel, alloy steel, sealing surface can be stainless steel or carbide, with good sealing and durability.

fig. beginning

products

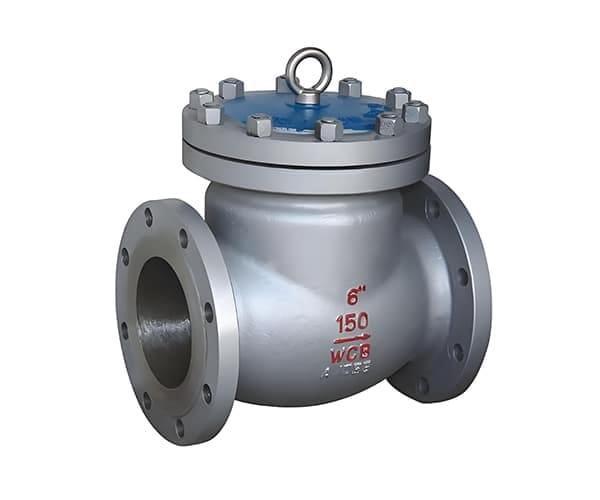

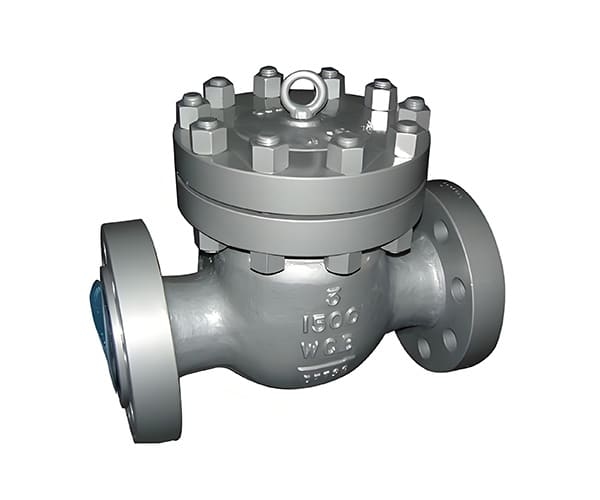

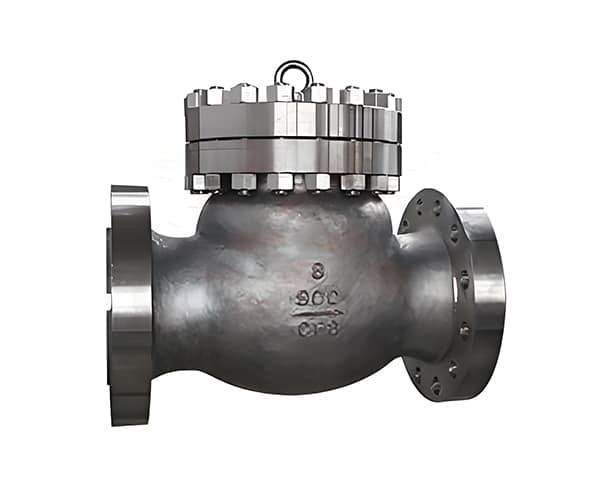

Carbon steel swing check valve

Model: H44H

Subtitle：Flanged swing check valve

The Steel Swing Check Valve is a standard backflow prevention valve designed to prevent reverse flow in a variety of industrial and commercial applications. The valve features a swing-open design that ensures a reliable seal with minimal volume, making it a versatile and cost-effective solution for water, steam, gas and oil systems.

Classification:Swing Check Valve

Working conditions:metallurgical plant, chemical plant, power plants, cement factory

Product Overview	The Steel Swing Check Valve is a standard backflow prevention valve designed to prevent reverse flow in a variety of industrial and commercial applications. The valve features a swing-open design that ensures a reliable seal with minimal volume, making it a versatile and cost-effective solution for water, steam, gas and oil systems. Constructed of carbon or stainless steel, this valve is durable, corrosion resistant, and suitable for moderate pressure and temperature conditions. Its simple and robust design allows for easy installation and maintenance, making it a popular choice for general purpose flow control.

Main characteristics	Swing-open design: hinged disk allows for smooth forward movement, low resistance, and immediate sealing upon flow reversal. Reduced water hammer effect compared to other check valve types. Durable Construction: Body Material: Carbon Steel (ASTM A216 WCB) or Stainless Steel (ASTM A351 CF8M) Internals: Stainless Steel Trim for Corrosion Resistance and Extended Life. Lower Maintenance: Self-cleaning disc design reduces wear and prolongs service life. Versatile installation: suitable for horizontal or vertical installation (upward flow). Available in flanged connections. Compliance: Meets API 594, ASME B16.34 and ISO 17292 for general industrial applications.

Product Features	Reliable sealing: The screw-on design ensures zero backflow, even at low pressures. Energy efficiency: Minimal pressure drop reduces pump energy consumption. Durability: Steel construction ensures long-term performance under moderate conditions. Ease of Maintenance: Simple design allows for quick inspections and repairs.

Product Advantages	Reliable sealing: The oscillating disc design ensures zero backflow, even at low pressures. Energy efficiency: Minimal pressure drop reduces pump energy consumption. Durability: Steel construction ensures long-term performance under moderate conditions. Ease of Maintenance: Simple design allows for quick inspections and repairs.

Medium of use

Water/hot water, petrochemical, vapor, General,

working condition

metallurgical plant, chemical plant, power plants, cement factory, petrochemical industry

summarize

The Steel Swing Check Valve is a reliable, cost-effective solution for preventing reverse flow in water, steam, oil and gas systems. Its swing disc design, durable steel construction and adherence to industry standards make it ideal for general purpose applications. Whether you're managing municipal water supplies, designing industrial process systems or supplying commercial equipment, this valve delivers consistent performance with minimal maintenance.

Product Parameters

Nominal diameter	?" to 24" (DN15 to DN600)
Nominal pressure	Class 150 to Class 600 (ASME B16.34)
Applicable temperature	-29°C to 425°C (-20°F to 800°F)
Valve Material	Carbon Steel (WCB), Stainless Steel (CF8M)
Valve material	Carbon Steel (WCB), Stainless Steel (CF8M)
Seat Material	Metal-to-metal or PTFE/graphite for high temperature applications
connection method	Flanges (RF, RTJ),
(an official) standard	API 594, ASME B16.34, ISO 17292
