Product Overview

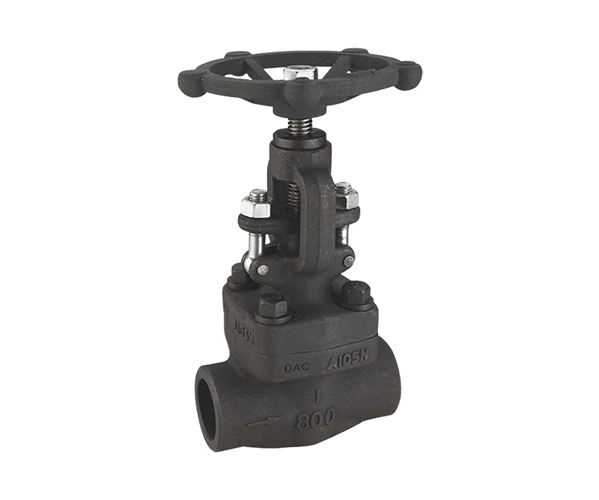

The Socket Weld Forged Steel Globe Valve is a high-performance isolation valve designed for small-diameter piping systems requiring a hermetic shutoff in high-pressure applications. Constructed from high quality forged steel, this compact valve offers superior strength and durability for critical applications in the oil and gas, petrochemical and power generation industries.

Main characteristics

Rugged construction
Material Grade: ASTM A105 (carbon steel), F11/F22 (chrome molybdenum steel), F316 (stainless steel)
Pressure Rating: ANSI 800-4500 (PN100-PN760)
Temperature range: -29°C to 593°C (-20°F to 1100°F)
Compact design: smaller face spacing than standard valves 30%

precision engineering
Flap design: conical valve plug for airtight shutoff
Stem design: Open stem (OS&Y) for visual position indication
Seat leakage: ANSI Class IV (Class VI optional)

reliable connection
Socket weld ends: ASME B16.11 compliant
Weld preparation: beveled ends to ensure a perfect fit
Size range: DN15 (?") to DN50 (2")
