Product Overview

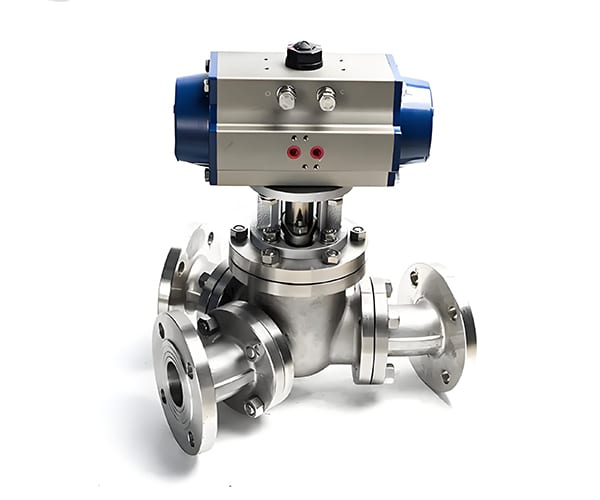

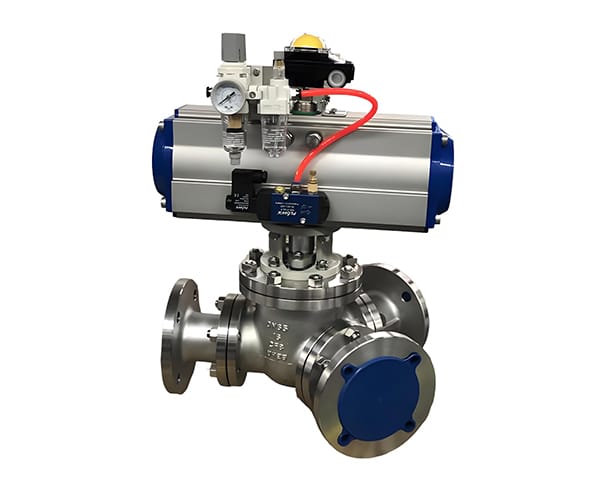

The Pneumatic 135 Degree Y-Type 3-Way Ball Valve is a versatile and reliable valve for directing, distributing or mixing fluids in complex piping systems. The valve features a unique Y design that rotates 135 degrees for precise flow control and efficient media distribution. The valve is pneumatically actuated for remote operation and automation in industrial systems.

It is especially suited for industries that require seamless flow control, such as oil and gas, chemical processing, water treatment and heating, ventilation and air conditioning (HVAC) systems. Ruggedly constructed for superior performance in demanding applications, the pneumatically operated 135-degree Y-shaped 3-way ball valve features tight shutoff, long service life and easy maintenance. The valve's Y design ensures smooth flow transitions and minimal turbulence, reducing the risk of pressure drop and increasing system efficiency.

Product Characteristics

135 Degree Swivel: The valve features a 135 degree swivel for precise switching between flow paths, seamlessly directing media flow between the three ports. This design is ideal for applications requiring high precision mixing or diverting.

Pneumatic Drive: Pneumatic actuators provide reliable, fast operation and are available in spring return or double acting configurations depending on application requirements. Pneumatic actuators are ideal for systems requiring automation and remote control. The actuator features a low energy design, making it both economical and efficient in automation systems. Explosion-proof or weather-proof options are available for hazardous environments.

Y-Design: The Y-design improves flow characteristics by ensuring a smooth, turbulence-free transition between the inlet and outlet. This minimizes energy loss and improves overall flow efficiency.The Y design also helps reduce cavitation and noise, especially when handling high pressure or high flow applications.

High-quality materials: Made of corrosion-resistant materials such as stainless steel (304, 316, 316L), carbon steel or alloys to withstand harsh media and environmental conditions. The ball and seat are precision machined to ensure optimum sealing and long life, ensuring zero leakage even at high pressures.

Leak-free performance: Designed with durable sealing materials such as PTFE, PFA, or metal seals, this valve ensures zero leakage under all operating conditions, providing long-lasting, tight shutoff. Ideal for systems where fluids and gases must be tightly controlled, such as chemical processes or critical fluid transfer systems.

Multiple connection options: A variety of connection types are available, including flanged, threaded and welded connections for flexible integration into different piping systems.

DURABLE AND RELIABLE: The valve utilizes a robust design and high quality materials to ensure reliable performance in both high pressure and high temperature applications for a wide range of industries and operating conditions.
