Product Overview

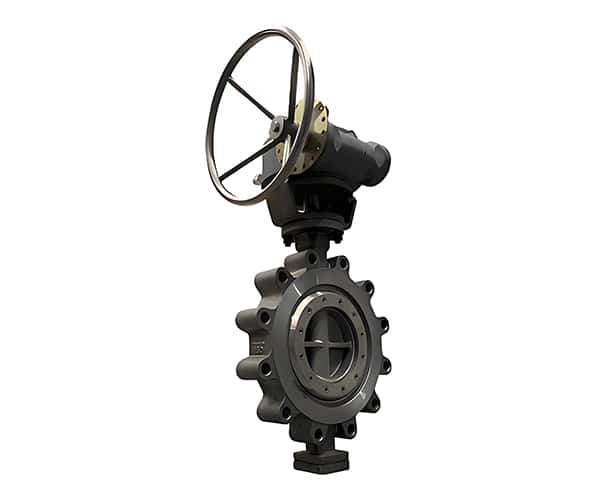

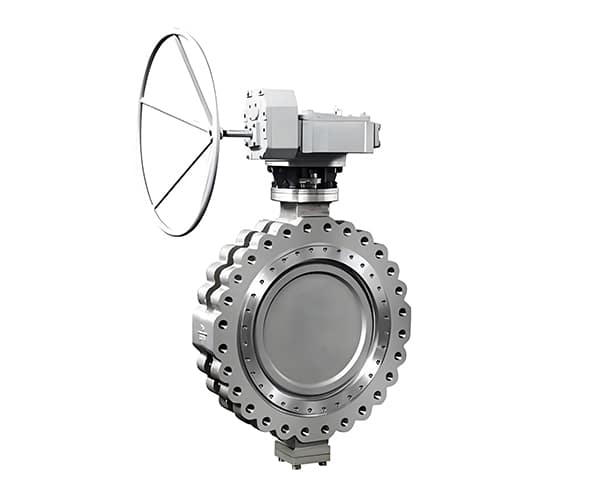

The Full Lug Butterfly Valve is a rugged and versatile flow control device that is widely used in pipelines due to its reliable sealing performance and ease of maintenance. The valve features a lug body design that allows it to be mounted between flanges, requiring only one side of the valve to be bolted on, making it ideal for use in end-of-pipe service.

Designed to meet demanding industrial requirements, the Full Lug Butterfly Valve is ideal for isolating or regulating flow in a variety of applications such as water treatment, chemical processing, oil and gas, and power generation. The valve is available in a variety of materials to suit different media and operating conditions, ensuring durability and operational efficiency.

Main features

Lugged Body Design: Lugged construction allows for independent bolting on both sides of the valve for ease of maintenance and supports blind end service without affecting downstream piping. Safe and reliable alignment is ensured during installation.

Wide range of material compatibility: Valve body materials include cast iron, ductile iron, stainless steel and carbon steel to meet a wide range of industrial needs.
Seat materials are available in EPDM, NBR, PTFE or metal seals to ensure compatibility with a wide range of media and temperatures.

COMPACT AND LIGHTWEIGHT: Space-saving design makes it ideal for installations where space is limited. Easy handling and installation reduces labor and operating costs.

Flexible drive options: Compatible with manual, pneumatic, electric or hydraulic actuators to support on/off and modulating controls.
Drive options enhance the automation of complex systems.

Reliable sealing performance: Concentric or eccentric flap and seat design ensures tight closure (zero leakage) in both directions.
Conforms to international standards such as API 609, EN 593 and ISO 5211.

Maintenance-Friendly Design: Easy-to-maintain construction allows for easy inspection, repair or replacement of internal components without removing the valve from the pipeline.

Product Advantages

Enhanced durability: withstands harsh environments and resists abrasion, corrosion and high pressure.

Cost-effective solution: Simple design with fewer components reduces initial costs and minimizes maintenance.

Wide range of applications: Suitable for a wide range of industries and can efficiently process liquids, gases and semi-solids.

Isolation Capability: Lug type valves can be used as isolation devices, allowing one side of the pipeline to be disconnected without draining the entire system.

Customizable Configurations: Available in a variety of sizes, pressure ratings and materials to meet specific operational requirements.
