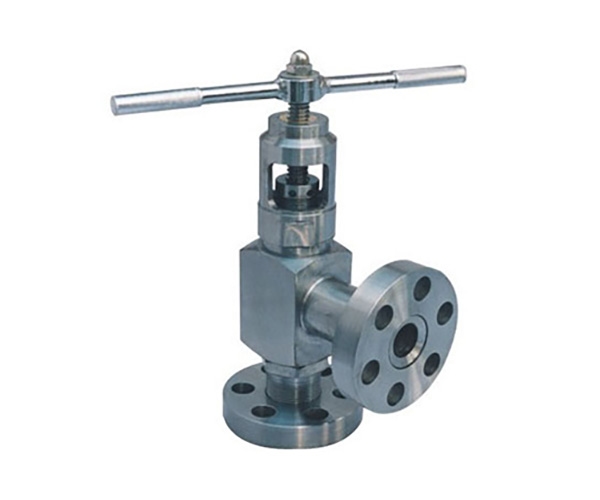

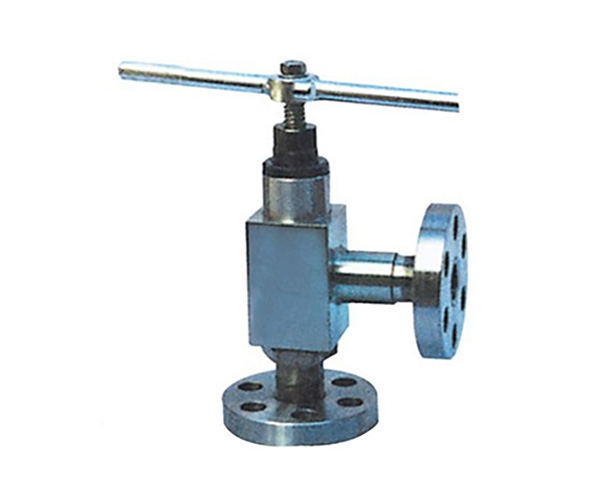

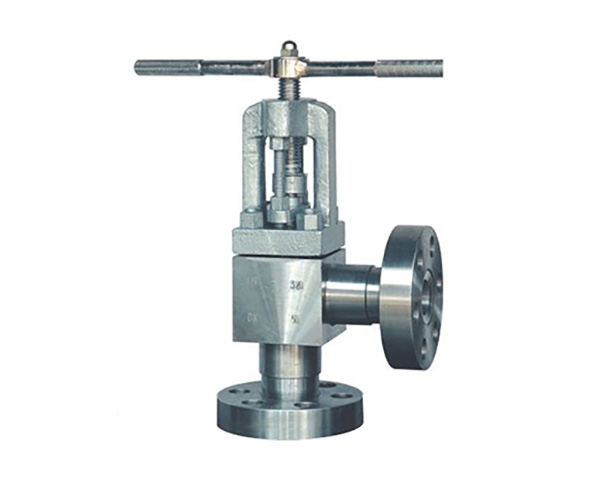

Forged Steel Globe Valve

Angle disconnecting valve is suitable for water, steam, oil, gas and corrosive media, widely used in petroleum, chemical, electric power and other systems for installation space is limited or flow direction change requirements of high working conditions. Its structure makes the medium flow direction change 90 °, reducing the use of elbows. Applicable temperature range of -29 ℃ to +550 ℃, depending on the choice of material. The main function is to cut off and regulate the flow, with good sealing and pressure resistance. Valve body commonly used materials are carbon steel, stainless steel, alloy steel, sealing surface can be surfaced carbide, suitable for high temperature and pressure and corrosive environment.

fig. beginning

products

Forged Steel Globe Valve

Model: J44Y/J44H

Subtitle：High pressure globe valve

Our Forged Steel Globe Valve is engineered for reliable flow regulation in high pressure, high temperature applications. Constructed from ASTM A105/A182 forged steel, it provides superior durability and sealing performance for critical process systems.

Tags:high pressure valve

Classification:Angle Globe Valve, Forged Steel Globe Valve

Working conditions:metallurgical plant, chemical plant, power plants, petrochemical industry

Product Overview

Main features

1. Robust structure
Forged steel body (meets ASTM A105/A182 F11/F22/F91)
One-piece bonnet design eliminates gasket leakage points
Anti-Blowout Stem for Operator Safety

2. Precision flow control
Parabolic valve plug design ensures precise flow characteristics
Equal Percentage Flow Curve (Adjustment Accuracy ±2%)
Multi-turn operation for fine adjustment

3. High performance seals
Metal-to-metal seats (Stellite 6 hardfacing alloy)
Dynamic packing system (graphite/graphite foil)
Fire resistant design in accordance with API 607

working condition

Oil & Gas

Wellhead Control System
Refinery process piping
Pipeline pressure regulation

send a telegram

Boiler feedwater control
Turbine bypass
Auxiliary cooling system

industrial process

Chemical injection
High pressure gas treatment
Utility Steam System

Technical Comparison

specificities	stop valve	gate	ball valves	butterfly valve
Key Features	flow rate regulation	incommunicado	On/Off	Regulation/Isolation
pressure drop	your (honorific)	lower (one's head)	very low	moderate
seal up	Metal/Soft Seat	metal seal	Soft/Metal Seat	Elastomer Seats
temperature range	-196°C to 593°C	-29°C to 425°C	-50°C to 200°C	-30°C to 150°C
Cycle life	50,000+	100,000+	25,000	10,000
most suitable	weir valve	incommunicado	Quick Close	large diameter

Medium of use

oils, petrochemical, vapor

working condition

metallurgical plant, chemical plant, power plants, petrochemical industry, High-temperature and high-pressure working conditions, High Temperature High Pressure Steam System

summarize

Forged steel globe valves offer superior durability and precise flow control for demanding industrial applications. Their rugged construction and flexible valve internals options make them ideal for high-pressure throttling applications where reliability is critical.

Product Parameters

Nominal diameter	?" to 12" (DN15 to DN300)
Nominal pressure	Class 150 to 2500 (PN16 to PN420)
Applicable temperature	-29°C to 593°C (-20°F to 1100°F)
connection method	RF, RTJ, BW, SW (ASME B16.11/34)
leakage rate	ANSI Class IV (option for Class VI)
