Product Overview

Piston flow control valve is a high-performance valve for precise flow control, widely used in petroleum, chemical, electric power, HVAC and many other industries. The valve is suitable for water, steam, gas, oil and various corrosive media, with excellent high temperature resistance, corrosion resistance and pressure resistance. Piston flow control valves achieve precise flow regulation through the up and down movement of the piston in the valve body, ensuring stable operation of the system under various working conditions. The advantages of the product include high adjustment accuracy, fast response speed, good sealing performance, precise flow control, and simple structure and easy maintenance. The valve adopts the advanced automatic adjustment principle, which can automatically adjust the flow rate according to the pressure change in the pipeline, preventing the occurrence of over-flow or under-flow, and improving the system safety and operation efficiency. Piston flow control valves have a wide range of applications in industrial systems requiring high-precision flow control and high stability, and are the ideal equipment for ensuring precise adjustment of flow in piping systems.

Product Technical Characteristics

Piston type flow control, pressure control valve is a kind of valve that can meet a variety of special adjustment requirements, its adjustment function is to rely on the piston-like valve plug in the valve cavity for axial (water flow direction) movement, to control the water flow of the valve outlet area to realize.

Piston type flow regulation, pressure regulating valve flow intuition effect

Piston type flow regulating pressure regulating valve sectional structure diagram

Product Design Features

1. Unlike a butterfly valve or gate valve with a valve plate: the spool (not the plate) of a piston valve moves in the axial direction (the direction of water flow).

2. Piston valves have a piston-like opening or closing mechanism.

3. The cross-section of the water flow at any position inside the valve body is annular.

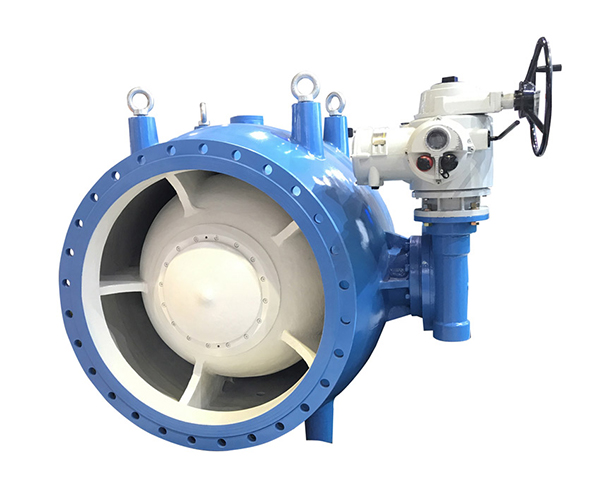

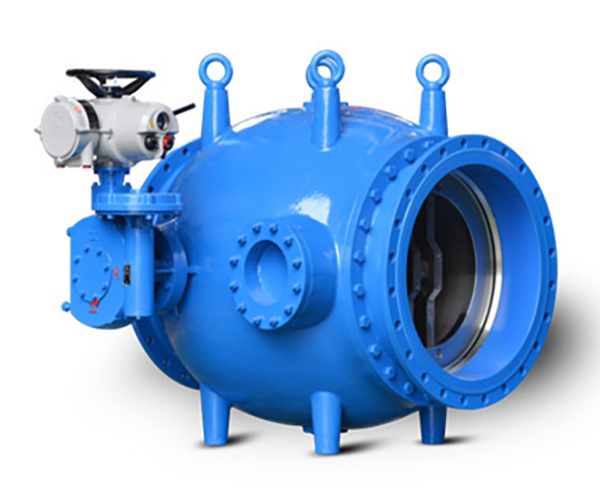

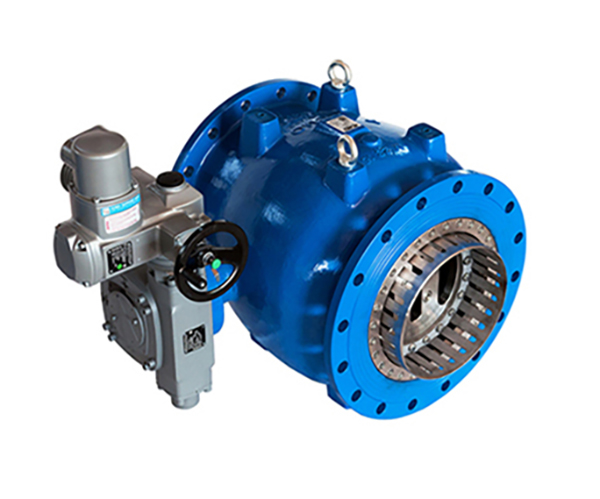

product mix

Piston Flow Control Valve Applications

1. It can be used as a relief valve or explosion-proof pipe valve in high-end water diversion projects.

2. Can be used as level or pressure regulating valves in water storage projects.

3. It can be used as a flow regulating valve in the water transmission project of pipeline network.

4. It can be used as pump start protection valve or water and gas flow adjustment valve in water purification or sewage treatment project.

5. The pressure balance of the network can be regulated during the water supply process.

Key Benefits

Piston Drive - Linear Motion Control, Accuracy ±2%

Dual function control - regulates flow and stabilizes pressure simultaneously

Low flow resistance - full bore design, head loss <0.5m

Intelligent Interface - 4-20mA/PROFIBUS Remote Control Compatible

Wear-resistant construction - epoxy coated bore + stainless steel piston assembly

typical application

Municipal water supply systems

Water plant flow control

Pipeline Pressure Balancing

Pumping station flow distribution

hydraulic engineering

Reservoir flood control

Irrigation channel flow distribution

Diversion pressure regulation

Industrial water supply systems

Cooling water distribution

Stabilized water supply for firefighting

Process water metering
