Medium-pressure compound exhaust valve body is drum-shaped, the valve internal including floats, brackets and sealing ring and so on. The valve is installed at the pump outlet or in the water distribution pipeline to exclude a large amount of air collected in the pipeline, or the air collected in the higher part of the pipeline is discharged to the atmosphere to improve the efficiency of the pipeline and the pump. When negative pressure occurs in the pipeline, it can automatically feed air at high speed to ensure the safety of the pipeline and avoid the damage caused by negative pressure.

　　II. Principles of operation

When the pipeline begins to fill with water, the float is in the open position for a large amount of air exhaust. When the air is discharged, the inner cavity of the valve is filled with water, the lower float rises and drives the upper float and sealing ring, so that the exhaust valve automatically closes and stops exhausting. When the normal delivery of water in the pipe, such as a small amount of air gathered in the valve to a considerable degree, the water level in the valve drops, the float drops with it, at this time the air is discharged from the small hole. When the pump stops, the water flow in the pipe is empty or negative pressure is generated in the pipe, at this time, the valve flap is opened quickly to inhale the air to ensure the safety of the pipeline.

　　III. Main technical parameters

Model: FPQ43X

Nominal pressure: PN40

Valve body test pressure: 4.0Mpa

Seal test pressure: 4.0Mpa

Applicable temperature: 0～80℃

Applicable medium: water

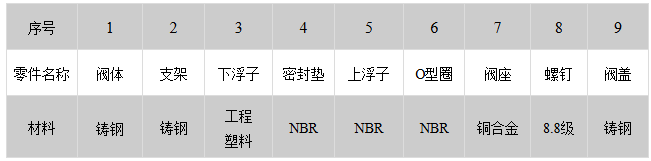

IV. Main parts materials

V. Exhaust valve installation location diagram

1, the pump outlet, before the check valve on the cross-pipe, in the pump start exhaust, stop the pump suction;

2, pipeline downhill, when the pump is stopped, may cause vacuum (or negative pressure) at;

3. At the breakthrough; and

4, long-distance slow ascending (descending) slope without the highest point of the pipeline, every 0.4 ~ 0.8 kilometers to set up a composite exhaust valve.

5. Composite exhaust valves are installed at the highest point of each uphill slope.

VII. Installation Precautions

1, the exhaust valve should be installed vertically on the cross-pipe, the deviation is not more than 2 degrees;.

2, in order to facilitate maintenance, the exhaust valve should be installed below an isolation valve (soft sealing gate valve, butterfly valve, etc.);;

3, winter exhaust valve should take anti-freezing measures.
